Box Tools - Model RTC

Carbide insert box tools are used in the turrets of screw machines, turret lathes, and CNC lathes for taking extra-heavy, rapid cuts in workpieces. Using triangular carbide throw-away inserts, downtime for tool bit sharpening is eliminated. You get a higher production rate at the lowest cost per cutting edge by removing stock 30% to 50% faster than with conventional cutters. The triangular carbide insert can be changed from one edge to another in less than a minute. Centerline is maintained when replacing the insert. Chips are controlled at any speed or feed rate or material by a built-in molded chip breaker. Extra-high roller blocks are available to provide support on the unfinished diameter of the workpiece. Carbide rollers and pins are available for extended wear. Standard carbide inserts have a 1/64" radius on corners; inserts with 1/32" radius are available and must be used with rollers that have a 1/64" chamfer. Old Style parts are listed on the Tooling Components page.  All parts are available except the block.

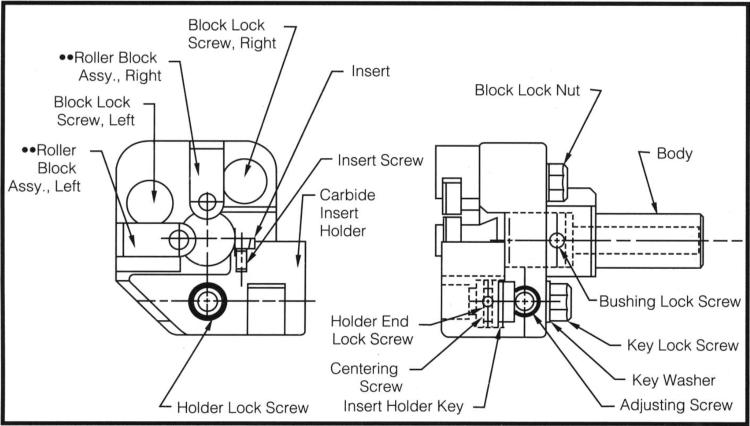

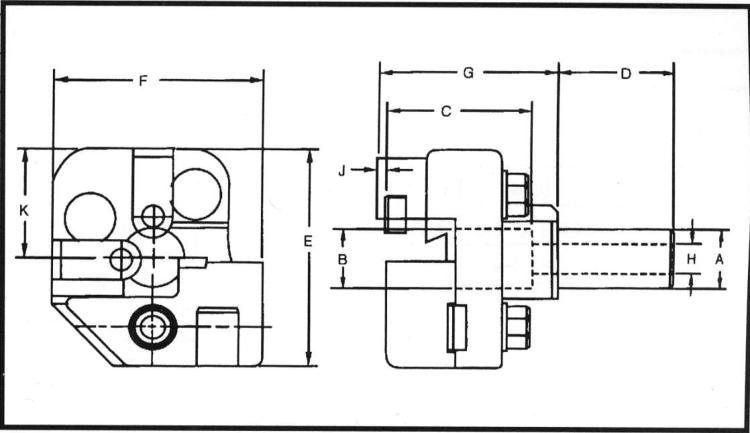

Model OORTC ORTC 2RTC 3RTC Std. Ordering Number 94200 94300 94400 94500 With Extended Rollers 113431 113430 113432 113433 30o Angled Block Box Tool 96250 96350 96450 96550 45o Angled Block Box Tool 96200 96300 96400 96500 Dimensions Turning Capacity .09-.38 .18.63 .25-.88 .31-1.25 A 0.625 0.75 1 1.5 B 0.44 0.75 1 1.31 C 1.38 1.81 2.44 3.25 D 1.38 1.5 2 4 E 2.125 2.75 3.125 3.66 F 1.81 2.5 2.88 3.88 G 2 2.25 3.06 3.88 H 0.38 0.38 0.56 0.88 J 0.09 0.09 0.09 0.12 K 0.94 1.25 1.53 1.75 Replacement Parts Body 51203 51303 51403 51503 Holder,Carbide Insert*** 94204 94304 94404 94504 Roller Block Assy., Right** 51202 51302 51402 51502 Roller Block Assy., Left** 51201 51301 51401 51501 Block Lock Screw (2 Reqd.) 5049 5149 5249 5319 Block Lock Screw, Right 51212 Block Lock Nut (2 Reqd.) 6232 6332 6332 6483 Adjustment Screw (3 Reqd.) 7406 5134 5234 5334 Insert Holder Key 51205 51305 51405 51506 Key Lock Screw 51208 51308 51408 51508 Key Washer 5043 5143 5243 5343 Holder Lock Screw*** 51209 51309 51409 51509 Holder End Lock Screw 51214 51214 51314 51514 Centering Screw 51213 51313 51413 51513 Insert Lock Screw*** 113223 113223 113224 113224 Carbide Inserts*** 113272 113272 113230 113230 Wrench, Torx Lock*** 113225 113225 113226 113226 Bushing Lock Screw 5044 6344 5244 5344 Roller and Pin Assy.* 105170 105171 105172 105173 Optional Parts Roller Block Assy., Right Ex. High 51228 51327 51428 51528 Roller Block Assy., Left Ex. High 51227 51328 51427 51527 Carbide Insert, 1/32 Radius 113270 113270 113229 113229 Roller, 1/64 Chamfer 51220 51320 51420 51520 Carbide Roller 5020C 5120C 5220C 5320C Carbide Roller, 1/64 Chamfer 51220C 51320C 51420C 51520C *Included in Roller Block Assy. See Tooling Components for details ** Roller Block Assy. consist of Roller Block, Roller, Roller Pin and Lock Screw. See Tooling Components for complete list of parts. *** Included in Block Replacement Kit.      94210         94310         94410      94510     Note: Min. Turning Diameter is .130" when rollers are on finish diameter, .090" diameter with rollers on the stock diameter of .130" plus.
