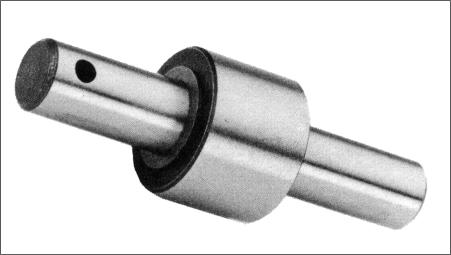

Screw Machine Cam Rollers and Pins

Made of hardened high-alloy steel, these rollers and pins are precision machined to a high

finish to assure the accuracy necessary for proper operation of screw machines.

Ordering Number 105174 105175 105176 105178 105179 Specifications Screw Machines OO &OOG OO & OOG OO & OOG O & OG O & OG Serial Number Over 12851 & Over 12851 &  Over 12851 & Over 8019 Over 8019 542-00-3300 & up 542-00-3300 & up  542-00-3300 & up  Used On Lead Lever Cross & Vert. Slides Lead Lever, Cross & Vert. Slides Lead Lever Cross & Vert. Slides Roller Diameter* 1/2 1/2 1/2 9/16 9/16 Roller Length* 3/8 3/8 3/8 7/16 7/16 Roller Pin Diameter* 1/4 1/4 1/4 1/4 1/4 Roller Pin Length* 1-5/16 1-1/16 1-1/4 1-5/16 1-1/16 Used With Cotter Pin Cotter Pin Cotter Pin Cotter Pin Cotter Pin Ordering Number 105180 105182 108183 105184 Specifications Screw Machines O & OG 2 & 2G 2 & 2G 2 & 2G Serial Number Over 8019 Over 7350 542-2-3100 Under 7351 Used On Cross & Vert. Slides Lead Lever, Cross & Vert. Slides Lead Lever Lead Lever & Cross Slide Roller Diameter* 9/16 5/8 5/8 5/8 Roller Length* 3/8 1/2 1/2 7/16 Roller Pin Diameter* 1/4 5/16 5/16 5/16 Roller Pin Length* 1-1/4 1-5/16 1-13/16 1-3/16 Used With Cotter Pin Cotter Pin Cotter Pin Set Screw *Sold as Roller and Pin Assembly only.
