Box Tools - Models TC-RA Retrofit Kit

                    RTC-RA Retrofit Kit

                    RTC-AB Angled Insert Blocks

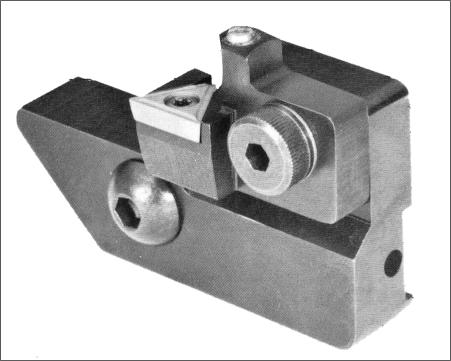

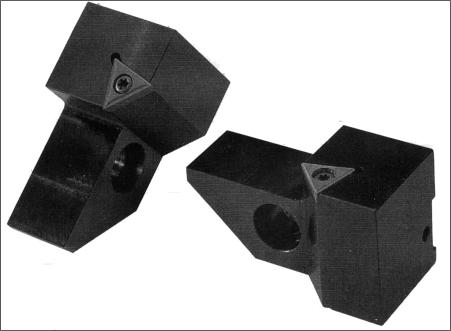

Releasing carbide insert adapters can be retrofitted to present box tools in the field in minutes to eliminate scroll marks that are a result of cutter drag caused by the cutter leaving the workpiece. The unique self-releasing adapter is available in a wide range of sizes and allows economical replacement of damaged parts while at the same time modernizing your current Boyar-Schultz box tools with the latest machining innovation. The adapter kits come complete with extra high roller block assemblies, keyholder, insert and tool holders to make the retrofit quick and easy. The old RTC, BTT and BTTC Box tools can be retrofitted with the new style BLOCK without any modifications to the current holders. The NEW BLOCK Kit comes complete with insert and screws to mount directly to your old holder. The NEW BLOCK improves performance, gives longer tool life, has less parts to replace and costs less. The NEW BLOCK will pay for itself in weeks if not days. The New 94 model will bring new life to your old holders. By angling the insert on the block, the NEW Boyar-Schultz Angled Insert Block lets you turn the outside diameter of the part and leave the desired angle at the end of the cut...all with one pass. Easily turn the lead angles for threaded parts or a chamfer on mating diameters. Angled Blocks reduce the need for multiple tools and operations and eliminate using a second tool and pass to achieve an angle on the part. The NEW Blocks mount on all current (RTC) carbide insert type box tools without any modifications. They easily adapt to Boyar-Schultz box tool bodies and standard roller blocks. Available for RTC Box Tools only.
Model OOTC-RA OTC-RA 2TC-RA 3TC-RA Ordering Number 113315 113316 113317 113318 Replacement Parts Insert Holder 113286 113286 113296 113296 Key Holder* 51205 51305 51405 51506 Tool Holder 113275 113285 113295 113305 Stop Pin 113282 113282 113282 113282 Stop Adjustment Screw 3667 3667 3667 3667 Spring Plunger Screw 113290 113290 113300 113300 Centering Screw 51213 51313 51413 51513 Holder Clamp Screw 113281 113291 113301 113311 Pivot Screw 113277 113277 113297 113297 Holder End Key Lock Screw 51214 51314 51314 51514 Insert Locking Screw 113223 113223 113224 113224 Carbide Insert** 113272 113272 113230 113230 Roller Block Assy., Left Ex. High* 113354 51327 51427 51501 Roller block Assy., Right Ex. High* 113355 51328 51428 51502 Pivot Washer 113278 113278 113298 113298 Insert Lock Wrench* 113225 113225 113226 113226 *Not shown but standard on retrofit kits. **Supplied with tool. See optional parts list for other sizes BOYER-SCHULTZ NEW BLOCK KIT FOR RTC MODELS Model OORTC ORTC 2RTC 3RTC Ordering Number 94210 94310 94410 94510 Holder Lock Screw 51209 51309 51409 51509 Insert Lock Screw 113223 113223 113224 113224 Carbide Inserts 113272 113272 113230 113230 Wrench, Torx Lock 113225 113225 113226 113226 FOR BALANCED BTT-C MODELS Model OOBTT-C OBTT-C 2BTT-C Ordering Number 94610 94710 94810 Holder Lock Screw 51209 51309 51409 Insert Lock Screw 113223 113223 113224 Carbide Inserts 113272 113272 113230 Wrench, Torx Lock 113225 113225 113226 NEW BOYER-SCHULTZ ANGLED BLOCKS Model OORTC ORTC 2RTC 3RTC 30o Block 96260 96360 96460 96560 45o Block 96210 96310 96410 96510 Note: Inserts and screws are the same as above.
