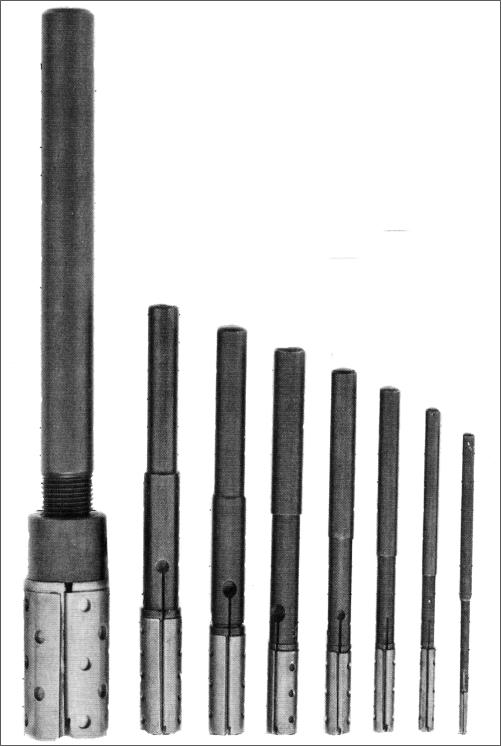

Copper Head Laps

Lap Tools

Boyar-Schultz makes the only copper head laps available. Copper extends the life

span of the sleeve, thereby reducing downtime for lap changes.

The design of our copper sleeves allows more lapping compound to be held and slowly

distributed during any finishing process.

Available in both standard and expansion.

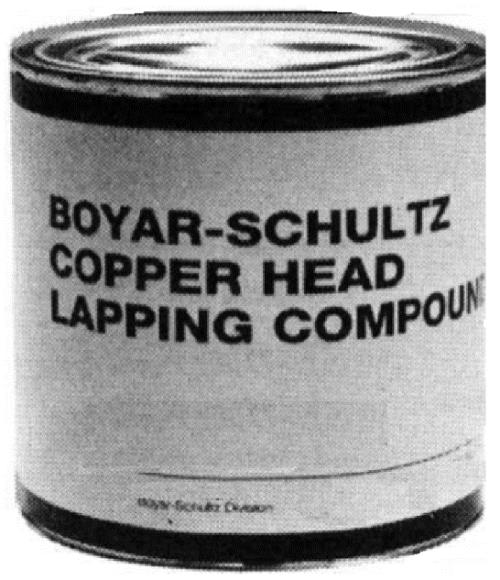

Standard Copper Head Laps Consists of steel arbor and replaceable copper sleeve. Extra sleeves are included with each lap as shown in product list. Expansion Copper Head Laps Consists of arbor, socket wrench and replaceable copper sleeve. (Arbor is made up of arbor expansion body, arbor shank, locking collar washer and socket-head screw.)  Extra sleeve are included.   Lapping Compound Our lapping compound has been developed for use with our special copper head lap sleeves.  We recommend the use of this lapping compound with our laps.  Furnished in 1 lb. containers only.

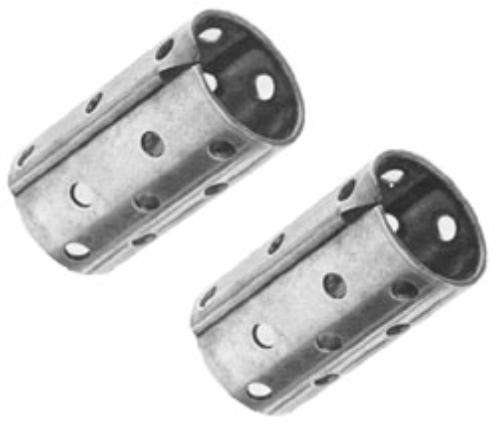

Copper Head Lap Sleeves

Lap Tools

Boyar-Schultz Copper Head Laps can be used on practically any material-hardened steel,

carbide, chrome, ceramics, etc. We offer both standard sizes and special expansion sizes.

Simply give us a call with any special lapping need.

The only part which wears on our copper head laps is the replaceable copper sleeve. Boyar-

Schultz Copper Sleeves wear longer than any other sleeve on the market, thereby reducing

replacement costs. When a copper sleeve does wear out, simply discard and replace with a new

correct sized sleeve. Ordering information for replacement sleeves is listed.

Extra Sleeves

We recommend the purchase of one package of extra sleeves with each lap ordered for best economy.

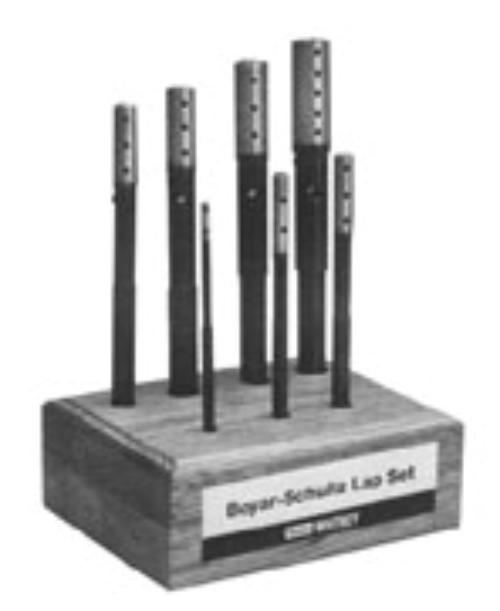

Lap Set

Our special bench lap set saves valuable time in tool and die work providing a supply of the seven most

commonly used lap sizes.

Every tool maker should have one for his own personal use. Supplied with a convenient base.

104357 Lap Set

Tool Maker's Set Includes:

Die cast base ~ black enameled

1 Lap each ~ 1/8", 3/16", 1/4", 5?16", 3/8", 7/16", 1/2"

6 copper sleeves of each of above size.

NOTE: All specifications subject to change without notice

Part No. Size Part No. Size Six copper sleeves are included with each of the following: 104217 1/8" 104248 7/16" 104221 5/32" 104251 15/32" 104224 3/16" 104254 1/2" 104227 7/32" 104257 9/16" 104230 1/4" 104260 5/8" 104233 9/32" 104263 11/16" 104236 5/16" 104266 3/4" 104239 11/32" 104269 13/16" 104242 3/8" 104272 7/8" 104245 13/32" 104275 15/16" Sold only in Packages of 24 Sold only in Packages of 12 Part No. Size Part No. Size 104218 1/8" 104258 9/16" 104222 5/32" 104261 5/8" 104225 3/16" 104264 11/16" 104228 7/32" 104267 3/4" 104231 1/4" 104270 13/16" 104234 9/32" 104273 7/8" 104237 5/16" 104276 15/16" 104240 11/32" 104279 1" 104243 3/8" 104246 13/32" 104249 7/16" 104252 15/32" 104255 1/2" Part No. Grain 104352 100 104353 150 104354 180 104355 240 104256 320 Part No. Size Six copper sleeve are included. 104278 1"
