Skiving Tool Holders - Brown & Sharpe Dovetail Form Tool Holder

Skiving Tool Holders for Brown and Sharpe Automatic Screw Machines

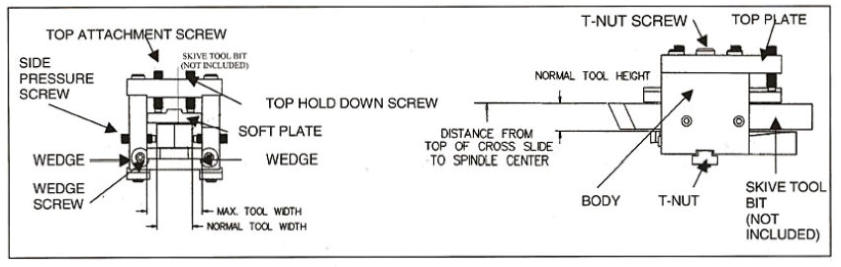

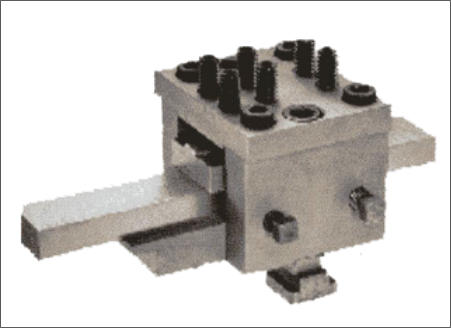

This holder can be used on either the front or back cross slide by changing the position of two nuts, so there is no need for two different holders.  Among the salient features is the possibility of setting the tool within a few thousandths, if necessary, of the collet.  Also, this is the first holder to our knowledge that permits rolling the tool to correct or straighten diameters.  Two tapered wedges, each individually adjusted, will raise or lower one side of the tool without affecting the other side.  This eliminates shimming up the holder to get the correct diameters.  Standard stock screws are used almost entirely.  A soft steel clamp plate is furnished.  This plate sits on the skive tool and the lock screws tighten down on this plate.  The blank tool is not furnished, however, its size can be determined from the table below.
Model Skive 00 Skive 0 Skive 2 Ordering Number 130000 131000 132000 Machine Size #00 #0 #2 Max Tool Width  * 1.110 1.500 2.100 Normal Height to Center Line  ** 0.500 0.718 0.844 * This can be increaded but will not go through holder, thereby limiting useable tool length to length from holder to tip of tool ** To determine tool heights, subtract base radius of tool (smallest radius tools will cut part on) from normal tool height shown. Replacement Parts Body 130001 131001 132001 Top Plate 130002 131002 132002 Wedge Set (2 reqd.) 130003 131003 132003 T-key 130004 131004 132004 Top Screws (6 reqd.) 130005 131005 132005 Side Screws (4 reqd.) 130006 131006 132006 Bolts 130008 131008 132008 Soft Plate 130010 131010 132010
