Rapi-Change Tooling

The quick and simple low-cost way to boost

productivity and increase machine utilization

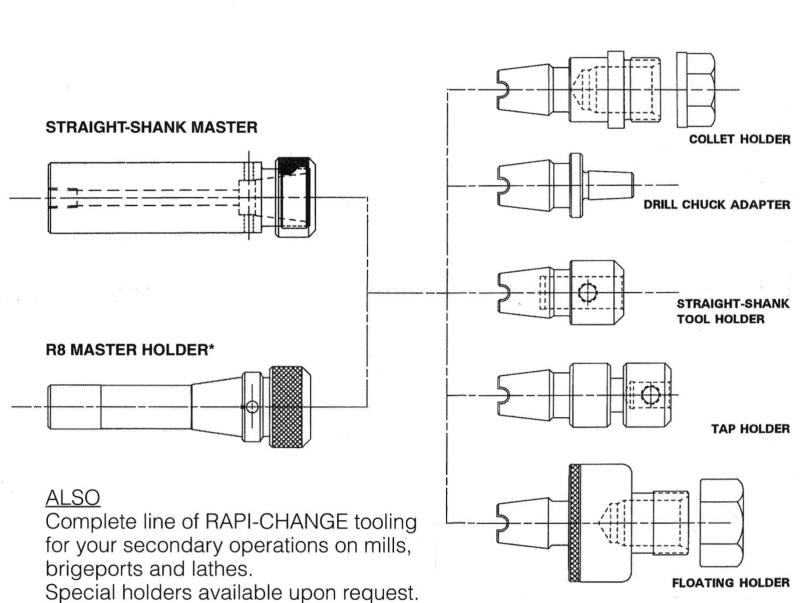

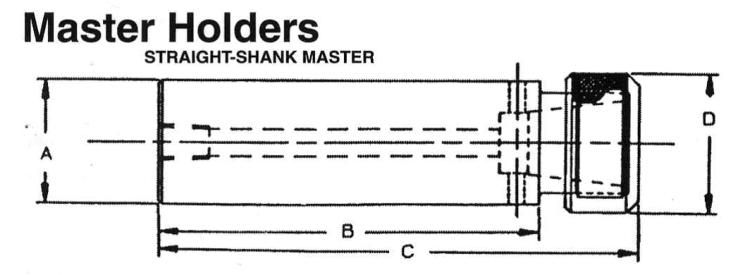

A management tool for controlling costs RAPI- CHANGE is a tooling system proven to help management gain and maintain closer control over the total cost of manufacturing. Lower cost per piece - higher productivity per machine Faster job setups and changeovers - including use of preset tooling Reduced tooling expense and inventory costs- integrated system allows easy interchanging of standard tools Smaller tool crib space and costs Lower cutting tool expense Reduced administrative costs - simplified tooling specification and selection Faster machine payback - lower interest costs The RAPI-CHANGE Tooling System illustrated below shows a choice of master holders for single multi-spindles. Both allow very simple hand changing of all the tool types in only seconds. The master holders have a simple master nut which locks the secondary holders into the spindle during the heaviest of cutting operations.

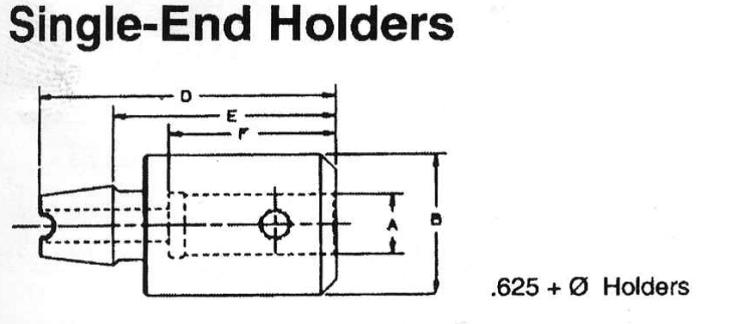

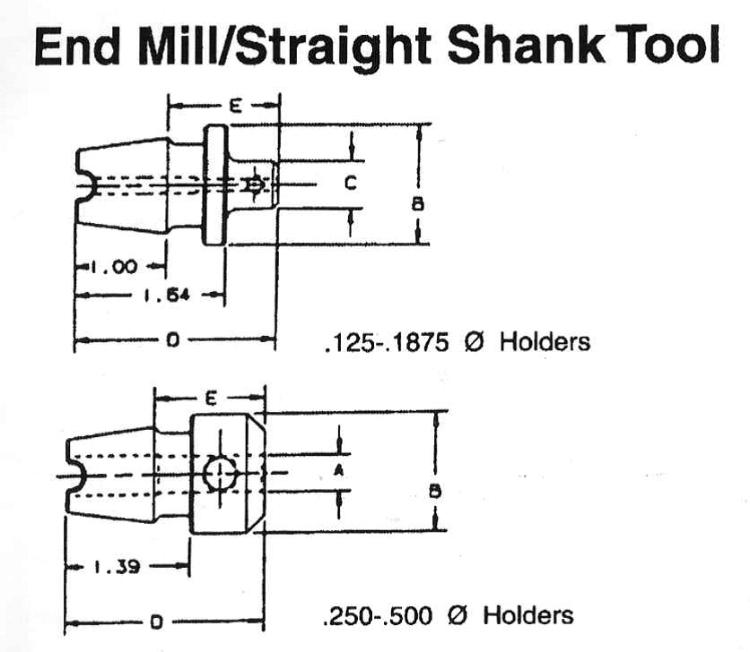

Part No. A B C D SIZE 207102 0.75 3 4.3 1.25 RC-O 207103 1 3 4.3 1.25 RC-O 217103 1 3 4.5 1.75 RC-1 217104 1 4 5.5 1.75 RC-1 217123 1.25 3 4.5 1.75 RC-1 217124 1.25 4 5.5 1.75 RC-1 217153 1.5 3 4.5 1.75 RC-1 217154 1.5 4 5.5 1.75 RC-1 227203 2 3 4.75 2.38 RC-2 227206 2 6 7.75 2.38 RC-2 227213 2.125 3 4.75 2.38 RC-2 227216 2.125 6 7.75 2.38 RC-2 227223 2.25 3 4.75 2.38 RC-2 227226 2.25 6 7.75 2.38 RC-2 227254 2.5 4 5.75 2.38 RC-2 227256 2.5 6 7.75 2.38 RC-2 237206 2 6 8 2.94 RC-3 237216 2.125 6 8 2.94 RC-3 237224 2.25 4 6 2.94 RC-3 237228 2.25 8 10 2.94 RC-3 237256 2.5 6 8 2.94 RC-3 Other sizes available upon request PART NO. A DIA. B DIA. C DIA. D E SIZE 210111 0.125 1.25 0.5 2.19 1.19 RC-1 210117 0.1875 1.25 0.5 2.19 1.19 RC-1 210125 0.25 1.25 - 2.19 1.19 RC-1 210131 0.3125 1.25 - 2.19 1.19 RC-1 210138 0.375 1.25 - 2.19 1.19 RC-1 210140 0.4375 1.25 - 2.19 1.19 RC-1 210150 0.5 1.25 - 2.19 1.19 RC-1 PART NO. A DIA. B DIA C D E F SIZE 210162 0.625 1.25 - 2.4 1.4 1.62 RC-1 210176 0.75 1.75 - 0.75 2.75 2.03 RC-1 210210 1 2 - 4.3 3.3 2.6 RC-1 220162 0.625 1.75 1.25 5.5 3.75 3.5 RC-2 220176 0.75 1.75 - 5.5 3.75 3.88 RC-2 220210 1 2 - 5.75 4 4.44 RC-2 230176 0.75 2.25 1.75 5.46 3 3.88 RC-3 230210 1 2.25 2 6.46 4 4.44 RC-3 230225 1.25 2.5 - 6.46 4 3.5 RC-3 230250 1.5 2.62 - 7.1 4.62 4.5 RC-3 Part No. A B C D E RANGE SIZE 210375 1.33 3.01 1.16 2.12 100DA .250 - .562 RC-1 210380 1.62 3.31 1.72 2.31 180DA .250 - .750 RC-1 210385 1.2 2.64 1.42 1.62 200DA .125 - .375 RC-1 ER collet holders are available upon request. PART NO. A B C D TAP TOOL CAPACITY SIZE 210500 0.5 1.25 2.38 3.38 0 -1/2 RC-1 210510 0.625 1.38 3.5 3.5 0 -5/8 RC-1 220500 0.5 1.25 4.11 4.11 0 -1/2 RC-2 220510 0.625 1.38 4.34 4.34 0 -5/8 RC-2 PART NO. A B C D COLLET TOOL RANGE SIZE 200300 0.68 2 0.69 300DA .015 - .250 RC-0 200305 0.68 2.7 0.99 200DA .125 - .375 RC-0 210310 1 2.8 1.24 100DA .250 - .562 RC-1 310315 1 3.65 1.5 180DA .250 - .750 RC-1 210305 1 2.5 0.99 200DA .125 - .375 RC-1 220310 1.74 3.55 1.24 100DA .250 - .562 RC-2 220315 1.74 3.8 1.5 180DA .250 - .750 RC-2 220305 1.74 3.74 0.99 200DA .125 - .375 RC-2 230315 2.44 4.1 1.5 180DA .250 - .750 RC-3 230320 2.44 4.5 2.22 400DA .090 - 1.00 RC-3 200405 0.68 1.7 0.5 ER8 .020 - .197 RC-0 200411 0.68 2.2 0.75 ER11 .020 - .276 RC-0 210411 1 2.5 0.75 ER11 .020 - .276 RC-1 210416 1 2.62 1.1 ER16 .020 - .394 RC-1 210420 1 2.8 1.34 ER20 .040 - .512 RC-1 210425 1 3.25 1.65 ER25 .040 - .630 RC-1 210432 1 3.6 1.96 ER32 .080 - .787 RC-1 210440 1 4 2.48 ER40 .118 - 1.024 RC-1 220420 1.74 3 1.34 ER20 .020 - .394 RC-2 220425 1.74 3.12 1.65 ER25 .040 - .512 RC-2 220432 1.74 3.3 1.96 ER32 .080 - .787 RC-2 220440 1.74 3.5 2.48 ER40 .117 - 1.024 RC-2
BOYAR-SCHULTZ SMT
Division of Lester Detterbeck Enterprises Ltd.
Copyright © 2016 BOYAR-SCHULTZ SMT, a division of Lester Detterbeck Enterprises, LTD Website by North Country Website Design_

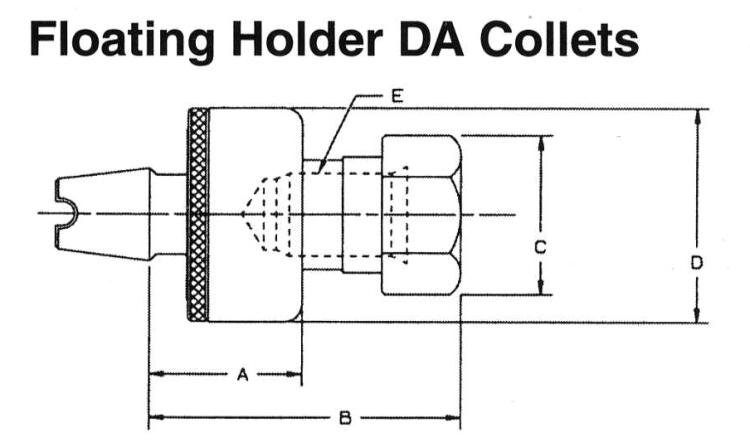

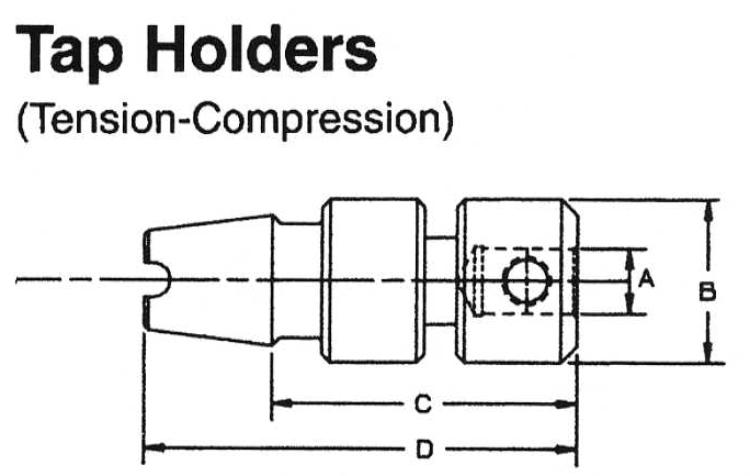

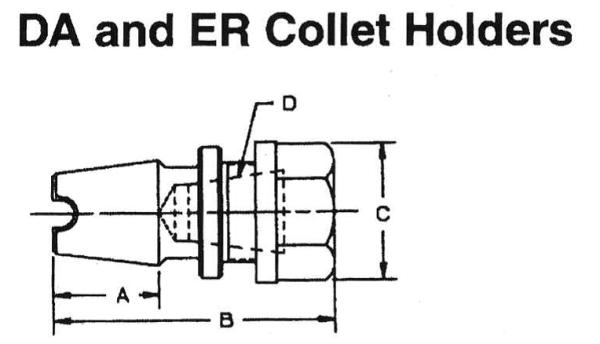

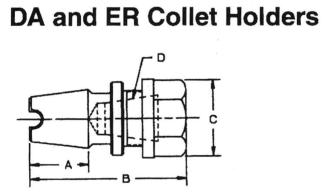

Part No. A B C D E RANGE SIZE 210375 1.33 3.01 1.16 2.12 100DA .250 - .562 RC-1 210380 1.62 3.31 1.72 2.31 180DA .250 - .750 RC-1 210385 1.2 2.64 1.42 1.62 200DA .125 - .375 RC-1 ER collet holders are available upon request. PART NO. A B C D TAP TOOL CAPACITY SIZE 210500 0.5 1.25 2.38 3.38 0 -1/2 RC-1 210510 0.625 1.38 3.5 3.5 0 -5/8 RC-1 220500 0.5 1.25 4.11 4.11 0 -1/2 RC-2 220510 0.625 1.38 4.34 4.34 0 -5/8 RC-2 PART NO. A B C D COLLET TOOL RANGE SIZE 200300 0.68 2 0.69 300DA .015 - .250 RC-0 200305 0.68 2.7 0.99 200DA .125 - .375 RC-0 210310 1 2.8 1.24 100DA .250 - .562 RC-1 310315 1 3.65 1.5 180DA .250 - .750 RC-1 210305 1 2.5 0.99 200DA .125 - .375 RC-1 220310 1.74 3.55 1.24 100DA .250 - .562 RC-2 220315 1.74 3.8 1.5 180DA .250 - .750 RC-2 220305 1.74 3.74 0.99 200DA .125 - .375 RC-2 230315 2.44 4.1 1.5 180DA .250 - .750 RC-3 230320 2.44 4.5 2.22 400DA .090 - 1.00 RC-3 200405 0.68 1.7 0.5 ER8 .020 - .197 RC-0 200411 0.68 2.2 0.75 ER11 .020 - .276 RC-0 210411 1 2.5 0.75 ER11 .020 - .276 RC-1 210416 1 2.62 1.1 ER16 .020 - .394 RC-1 210420 1 2.8 1.34 ER20 .040 - .512 RC-1 210425 1 3.25 1.65 ER25 .040 - .630 RC-1 210432 1 3.6 1.96 ER32 .080 - .787 RC-1 210440 1 4 2.48 ER40 .118 - 1.024 RC-1 220420 1.74 3 1.34 ER20 .020 - .394 RC-2 220425 1.74 3.12 1.65 ER25 .040 - .512 RC-2 220432 1.74 3.3 1.96 ER32 .080 - .787 RC-2 220440 1.74 3.5 2.48 ER40 .117 - 1.024 RC-2

Rapi-Change Tooling

The quick and simple low-cost way to boost productivity

and increase machine utilization

A management tool for controlling costs RAPI- CHANGE is a tooling system proven to help management gain and maintain closer control over the total cost of manufacturing. Lower cost per piece - higher productivity per machine Faster job setups and changeovers - including use of preset tooling Reduced tooling expense and inventory costs-integrated system allows easy interchanging of standard tools Smaller tool crib space and costs Lower cutting tool expense Reduced administrative costs - simplified tooling specification and selection Faster machine payback - lower interest costs The RAPI-CHANGE Tooling System illustrated below shows a choice of master holders for single multi-spindles. Both allow very simple hand changing of all the tool types in only seconds. The master holders have a simple master nut which locks the secondary holders into the spindle during the heaviest of cutting operations.
Part No. A B C D SIZE 207102 0.75 3 4.3 1.25 RC-O 207103 1 3 4.3 1.25 RC-O 217103 1 3 4.5 1.75 RC-1 217104 1 4 5.5 1.75 RC-1 217123 1.25 3 4.5 1.75 RC-1 217124 1.25 4 5.5 1.75 RC-1 217153 1.5 3 4.5 1.75 RC-1 217154 1.5 4 5.5 1.75 RC-1 227203 2 3 4.75 2.38 RC-2 227206 2 6 7.75 2.38 RC-2 227213 2.125 3 4.75 2.38 RC-2 227216 2.125 6 7.75 2.38 RC-2 227223 2.25 3 4.75 2.38 RC-2 227226 2.25 6 7.75 2.38 RC-2 227254 2.5 4 5.75 2.38 RC-2 227256 2.5 6 7.75 2.38 RC-2 237206 2 6 8 2.94 RC-3 237216 2.125 6 8 2.94 RC-3 237224 2.25 4 6 2.94 RC-3 237228 2.25 8 10 2.94 RC-3 237256 2.5 6 8 2.94 RC-3 Other sizes available upon request PART NO. A DIA. B DIA. C DIA. D E SIZE 210111 0.125 1.25 0.5 2.19 1.19 RC-1 210117 0.1875 1.25 0.5 2.19 1.19 RC-1 210125 0.25 1.25 - 2.19 1.19 RC-1 210131 0.3125 1.25 - 2.19 1.19 RC-1 210138 0.375 1.25 - 2.19 1.19 RC-1 210140 0.4375 1.25 - 2.19 1.19 RC-1 210150 0.5 1.25 - 2.19 1.19 RC-1 PART NO. A DIA. B DIA C D E F SIZE 210162 0.625 1.25 - 2.4 1.4 1.62 RC-1 210176 0.75 1.75 - 0.75 2.75 2.03 RC-1 210210 1 2 - 4.3 3.3 2.6 RC-1 220162 0.625 1.75 1.25 5.5 3.75 3.5 RC-2 220176 0.75 1.75 - 5.5 3.75 3.88 RC-2 220210 1 2 - 5.75 4 4.44 RC-2 230176 0.75 2.25 1.75 5.46 3 3.88 RC-3 230210 1 2.25 2 6.46 4 4.44 RC-3 230225 1.25 2.5 - 6.46 4 3.5 RC-3 230250 1.5 2.62 - 7.1 4.62 4.5 RC-3
